Synchron Replacement 2 Wire Spring Return Damper Motor Replaces 39647R, 38766R, 39154R, and 37789R Synchron Motors
39647R-SUB
BACK
IN STOCK!

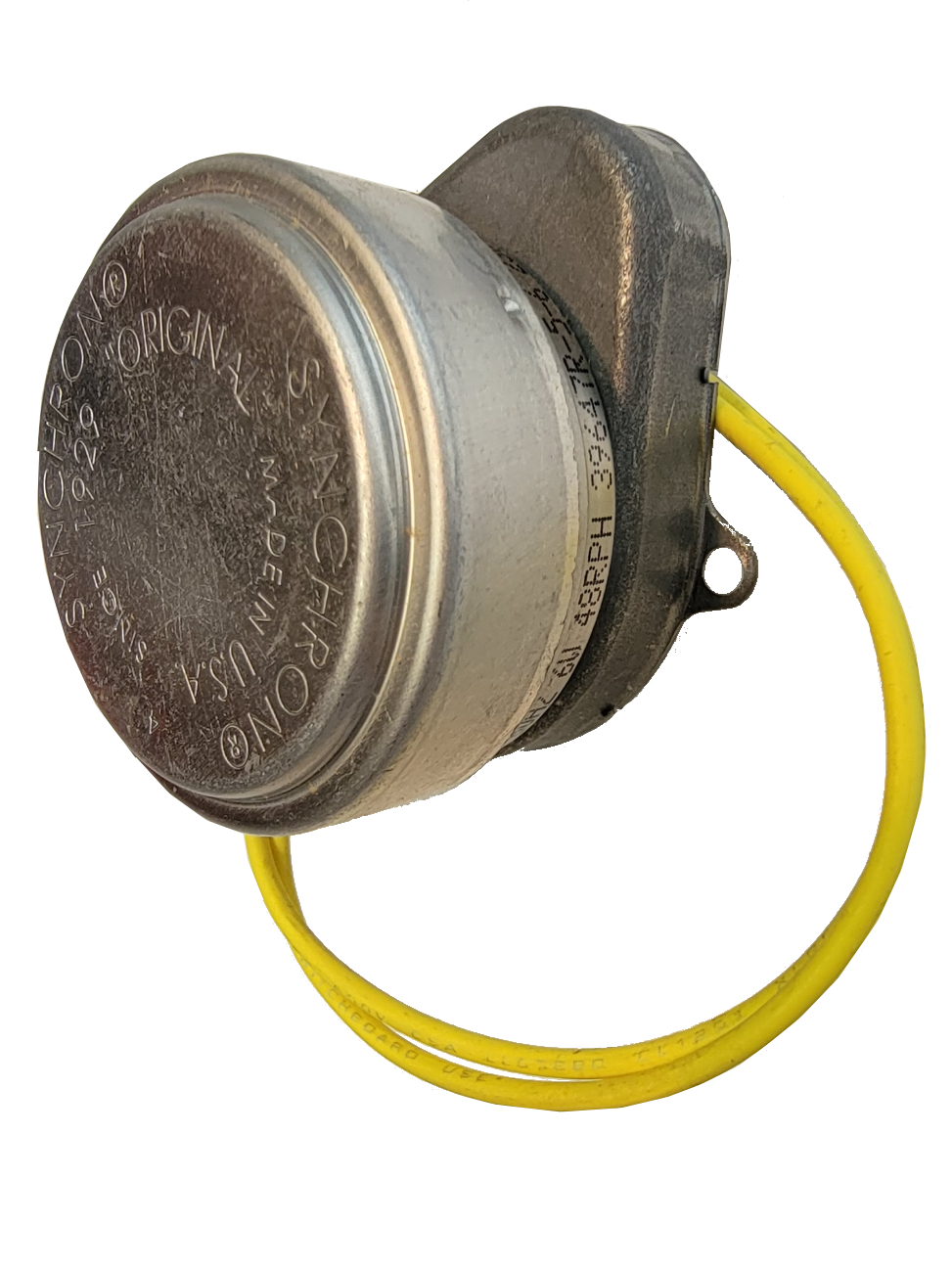

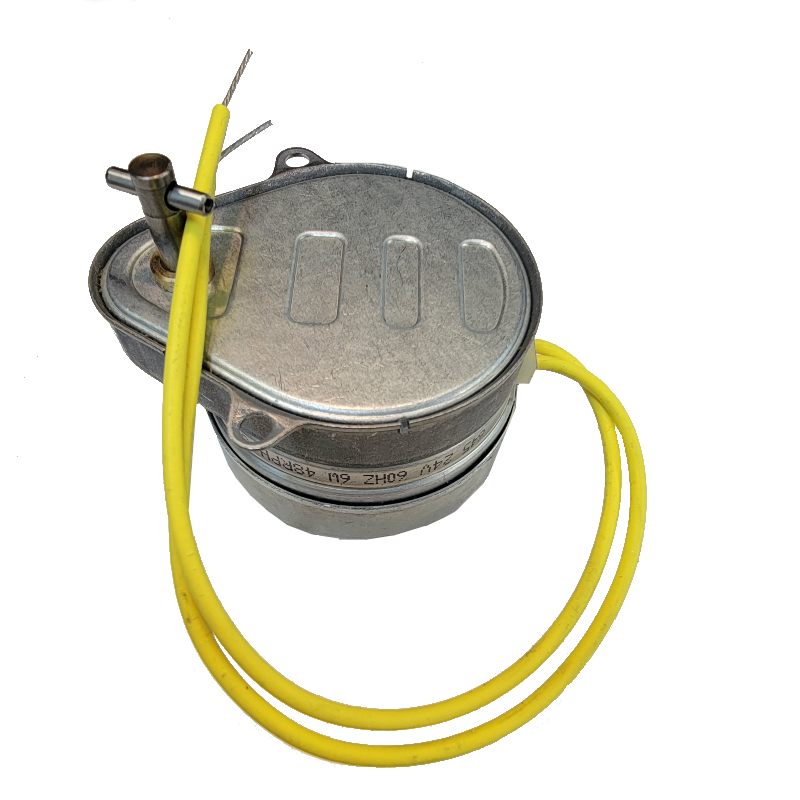

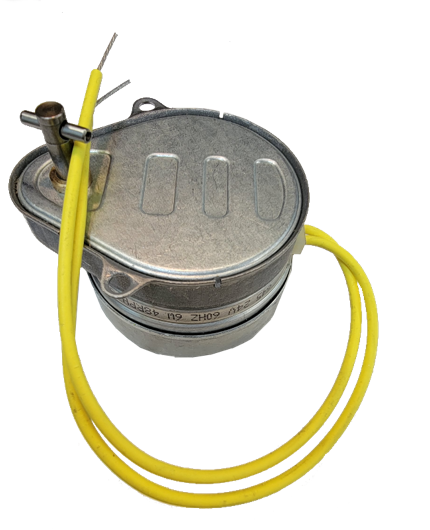

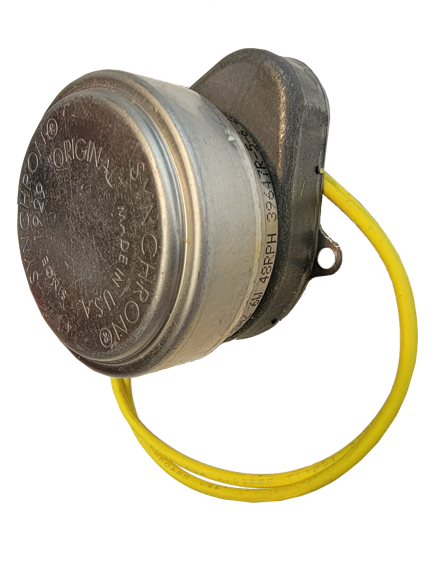

Synchron motor replacement
p/n 39647R - SUB
(yellow wires)
for the obsolete or difficult to find 38766R,39154R, 38572R and 37789R motor numbers. Please do not order unless your motor matches the numbers above.
This is another quality substitution motor that we have developed to keep your damper going and not require full damper replacement. Quality Synchron motor has the same specification to the 38766R, 39154R, 38572R and 37789R motor you are replacing.
* Can't find the right motor? Send an email message to us at: support@retrozone.com.
* All motors are new inventory, 1 year warranty, and come with full service and support. Belimo kits carry a 5 year warranty on the motors and will far outperform he original motor.
Also look at this option: Replacement Synchron motor,
with similar attributes.

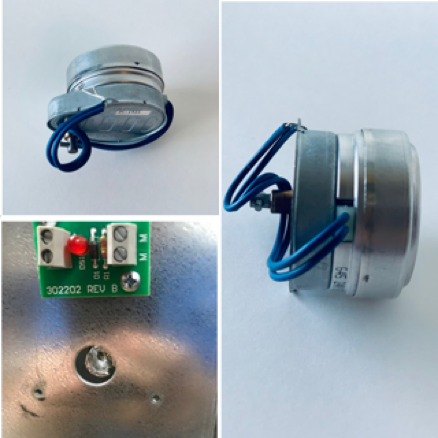

Part no. 39154-SUB
(blue wires)
Installer will need to drill out end of hollow aluminum damper shaft about 1/4 inch with a 21/64, 11/32 or similar size bit, to allow brass nose on shaft to enter shaft so motor will fully seat on damper. A 21/64 drill bit will be applied with this motor.
Since the shaft material is both aluminum and already hollow, this is typically not difficult if carefully done.
Another method to mount the motor is to install washers under the mounting screws of motor, to elevate the motor so the brass nose piece does not interfere with the damper shaft. While his eliminates the need to drill the end of the shaft, it may cause a shorter life span of the motor, especially on larger (12 inch and above) dampers. The washers are NOT needed if the drilling method described above is used. Use the drilling method if practical.
39154-SUB
Please note: We offer two Belimo kits designed to replace the SUB motor at about the same cost, which mount a far more robust Belimo commercial motors in the place of the old Synchron motor. Both Belimo kits carry a 5 year warranty and will far outperform the original motor.
