Rectangular Damper Questions need to answer

 to COMPLETE your Order:


A. Size, like; “8 inches x 24 inches”


B. What side the motor is on using the selected measurements; like “8 inch side”


C. Normally Open or Normally Closed when unpowered:

This means with no power applied, is the damper open?

or closed? Important: When used with a zone control system, you will need to order normally open. When used tied directly to a thermostat or switch, you will want to order normally closed.


D. Rectangular dampers are custom made

 and not returnable due to size or

 configuration errors.

Please carefully review your confirming invoice to ensure correct product for your application.

These are CUSTOM, Made-To-Order dampers

‍ that take approximately 10 business days to make

Note: The DuroZone PMB Dampers currently have a 10 day lead time due to the current aluminum shortage, but we have these sizes in stock and ready to ship.

PMB Custom Mechanical Rectangular Damper, rectangular dampers, mechanical damper, custom damper, hvac, air conditioning supplies, RetroZone

Please see our Surplus Dampers that are in stock.

Click on pictures in gallery to view entire images.

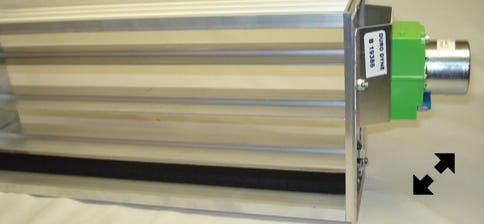

PMB Custom Mechanical Rectangular Damper


No Springs here! Get rid of troublesome 2 wire spring return dampers with these quality 3 wire dampers, that use power only when moving-motors always stay cool, and backed by a 5 year warranty.


Also can be wired directly to a common thermostat, with no relay needed.

24vac motors, in production over 20 years, built in the USA.


Compatible with almost any zone control system, including:


Honeywell

RetroZone

Trol A temp

RCS

Ztec

EWC

Aprilaire

Research Products

Jackson Controls

Robertshaw

Lennox

XCI

Ecojay

and most others.




PMB Small

6x8

6x10

6x12

6x14

6x16

6x18

6x20

8x8

8x10

8x12

8x14

8x16

10x10

10x12

PMB Medium

6x22

6x24

8x18

8x20

8x22

8x24

10x14

10x16

10x20

10x22

12x12

12x14

12x16

12x18

14x14

14x16


PMB Large

10x24

12x20

12x22

12x24

14x18

14x20

16x16

16x18

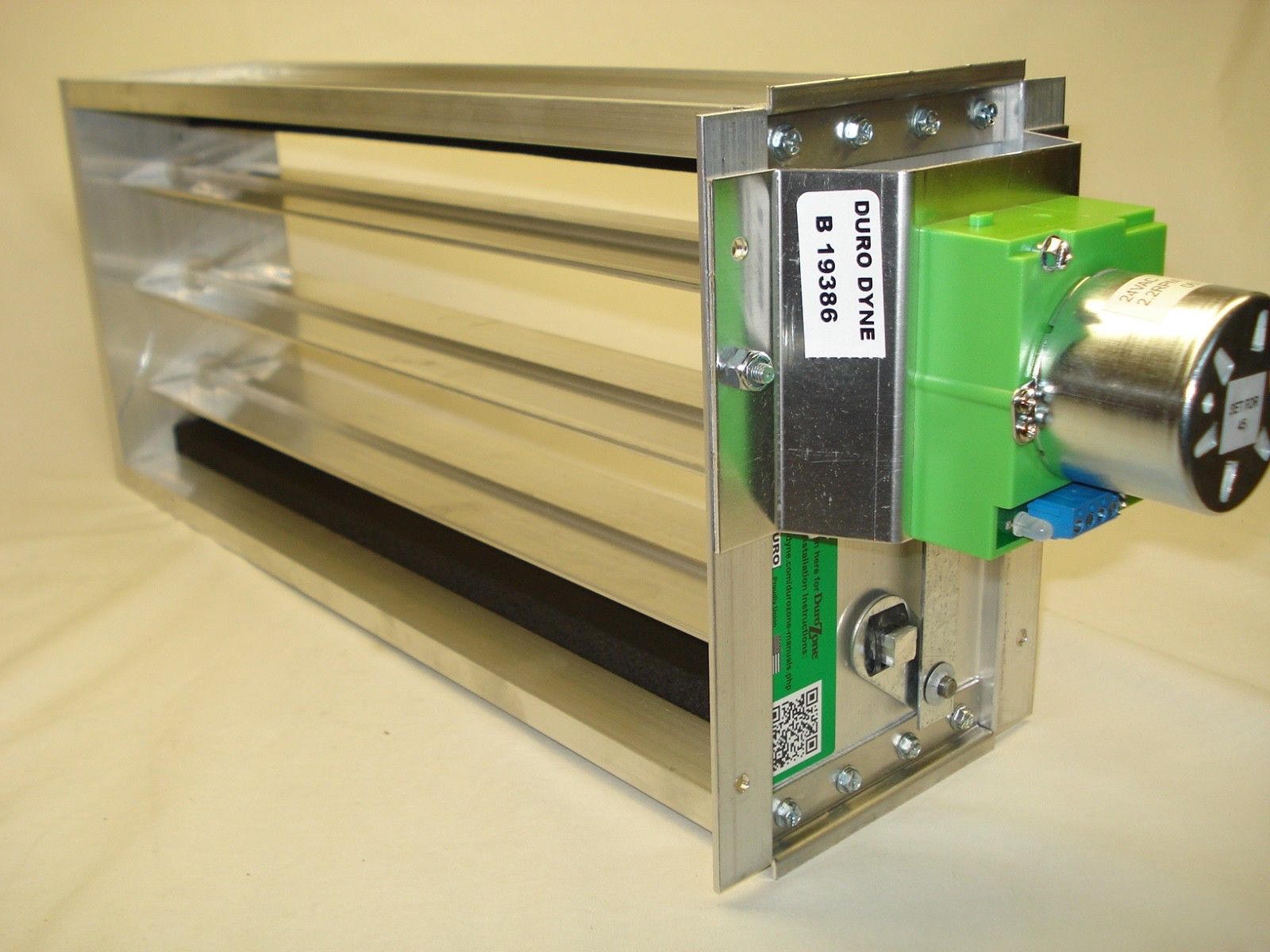

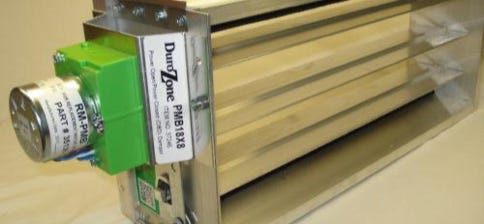

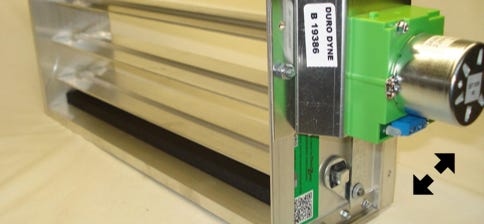

Durozone PMB Series

Durozone Motorized Zone Control 3 Wire

Rectangular Damper

3 Wire, Power open, power closed Motorized Rectangular Zone Control or

HVAC Air Control Damper






Note: You must tell us what side you need the motor on when ordering, please use the pull down menu to tell us “motor on long or short side”.


With a 5 year warranty and all metal construction, this damper beats all competition:


*No springs, 3 wire power open, power close. works on all zone control panels using 24vac two position dampers.

*Works on zone panels with only two wire damper outputs.

*Works directly from any 24vac thermostat, no relay needed!

*replaces all 2 wire, 24vac spring return dampers.

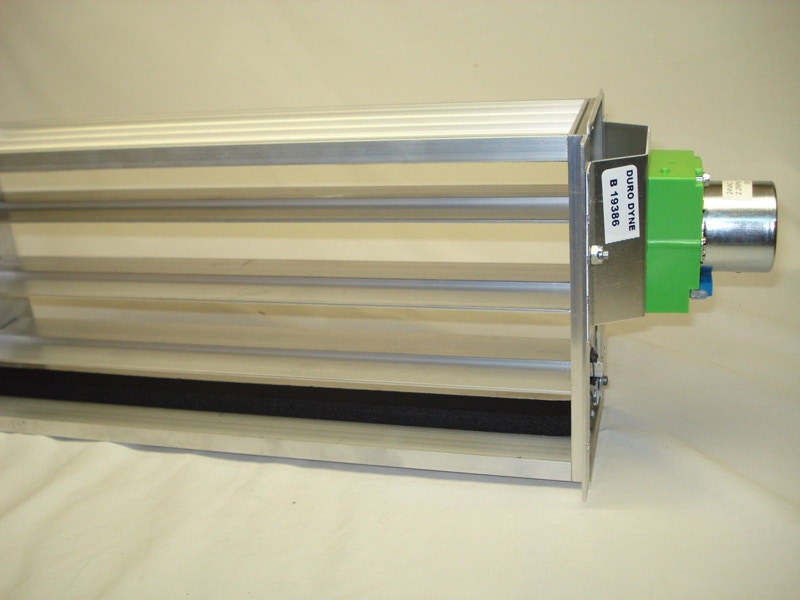

*24volt AC operation, damper body: aluminum, 4.1 inches wide, blade contained in frame. 5.5 inch wide end plate.

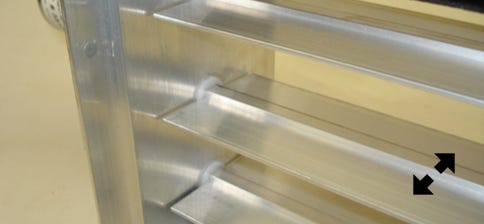

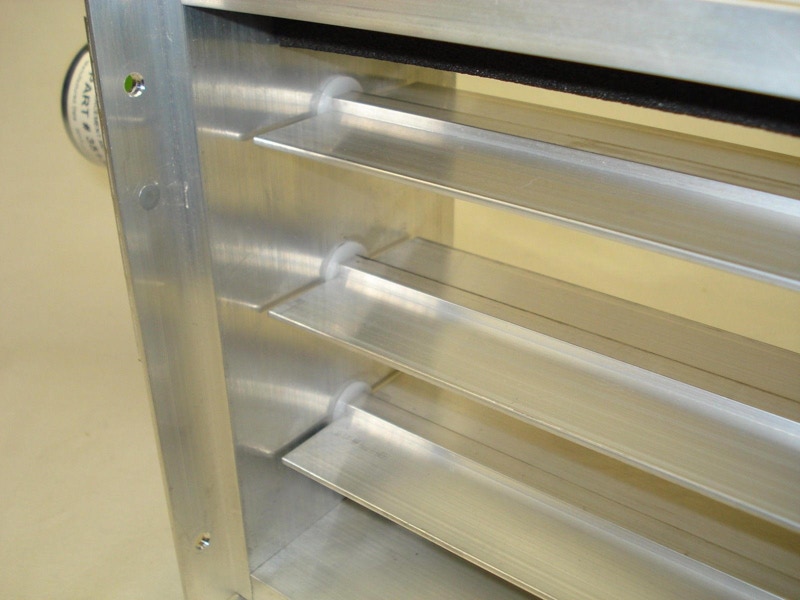

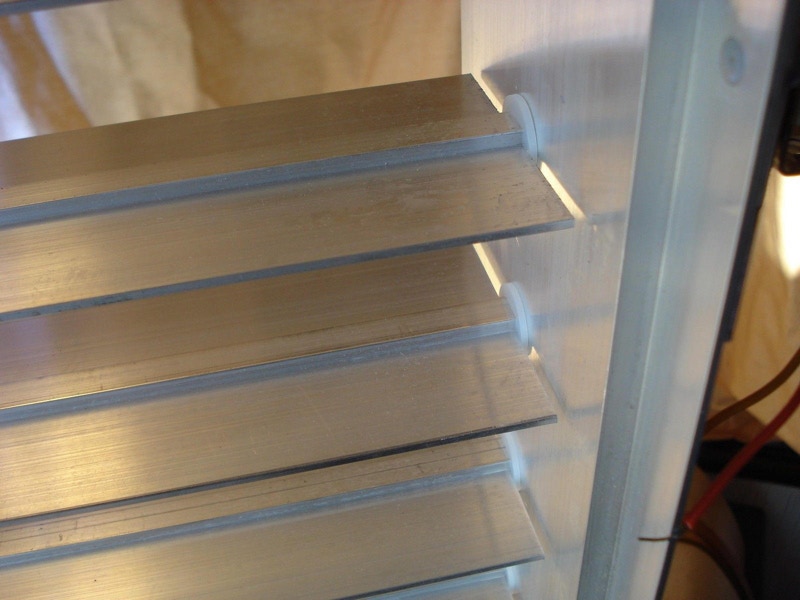

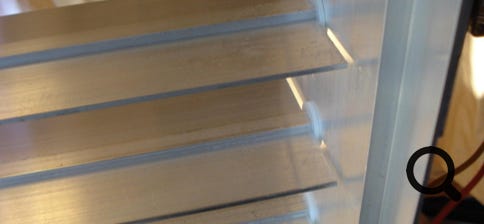

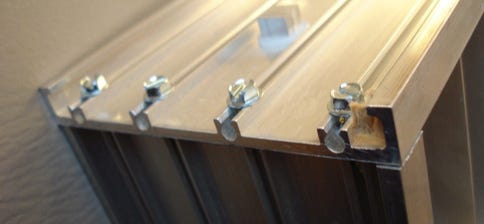

*Solid milled aluminum opposed drive blades, no rivets to come loose or rattle.

*heaviest, widest, strongest, most jam-proof aluminum frame of any competitive damper.

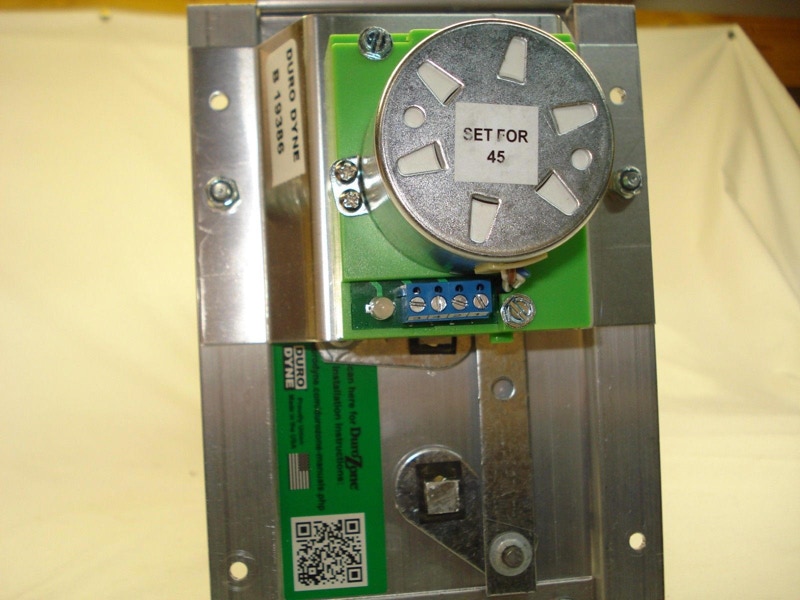

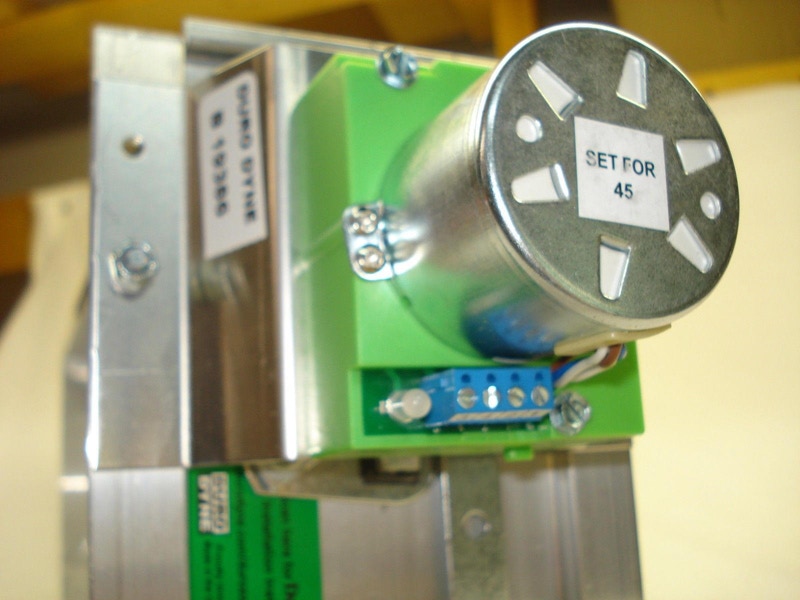

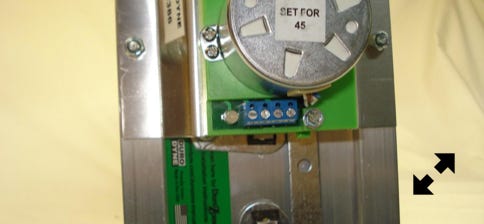

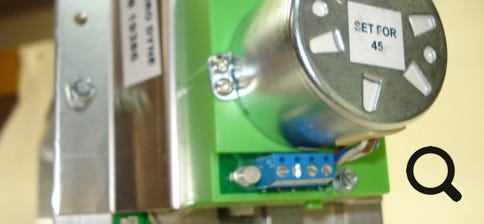

*5 year warranty motor with all metal gears, no plastic gears to strip, and an all metal drive shaft

*All metal, built in the USA  *Compatible with almost any brand or type of 24vac zone control system.

Call us at 972-633 8104 with any questions.



Each damper is made to your specifications.

Dampers are shipped about 1/8 inch undersized in each dimension to insure they will fit in a standard size rectangular duct.


See item "HVAC Motorized Large Rectangular Zoning Damper" at EBAY store "Dampers Direct" for other sizes.



E-mail us with questions, we offer or can build almost any damper, including commercial grade dampers.


Returns: Buyer pays return shipping costs, these dampers are custom built to order, 30% restock charge will apply. Please Check sizes and motor side carefully.




E-mail us with questions, we offer or can build almost any damper, including commercial grade dampers.
