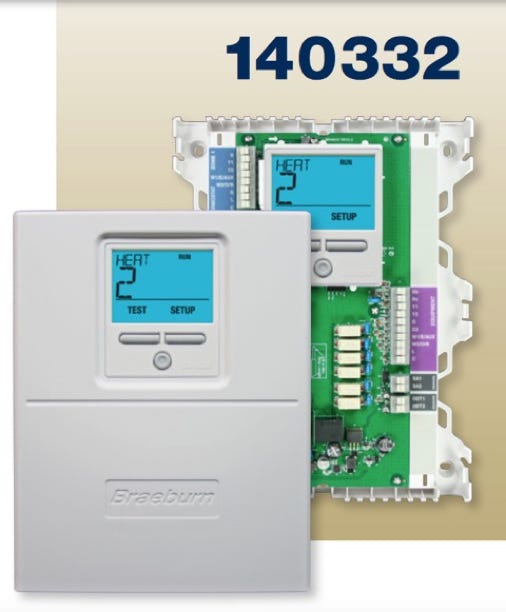

Braeburn Premier Series 140332

 3-Zone Control Panel (3H/2C)


Braeburn's New Premier Series 3-Zone Control Panel for Conventional, Heat Pump or Dual Fuel Applications.

FREE AIR SUPPLY SENSOR NOW COMES INCLUDED!






Braeburn 140332 3-Zone Control Panel, zone control, hvac, air conditioning supplies, RetroZone

Specifications:

• Power - 24 VAC

• Outdoor Sensor - Optional (Model 5490)

• Supply Air Sensor - Optional Free Included(Model 149156)

• Indicators - LED’s for all thermostats, equipment and dampers, LCD for configuration

• Thermostat - Conventional or Heat Pump Up to 3H / 2C

• Construction - PC Board in High Impact Housing

• Mounting - Wall or Return Air Plenum Mount

• Environmental - Storage -40 degrees F to 167 degrees F, Operating -22 degrees F to 167 degrees F


Features:

• Controls up to 3 heating and 2 cooling stages

• Compatible with electric, gas, oil and heat pump equipment–including dual fuel

• Can be used with virtually all low-voltage thermostats and dampers from other manufacturers

• Large 5.5 sq. in. backlit display shows system status

• Dual fuel operation with Braeburn outdoor sensor model 5490

• LED’s show all calls at a glance

• Push-in terminals for easy wiring– no screwdriver needed

• Flexible staging controlled by panel or thermostat

• Push button set-up without dip switches

• High/Low Limit protection with FREE optional supply air sensor
